AI 3D Borescope

target

Product Advantages

AI Offline Defect Recognition

The built-in model can offline recognize 9 kinds of defects such as cracks, pits and ablation. It supports local data training of private models and provides military-grade data security protection.

AI-powered bidirectional dynamic blade counting

Automatically counts blades to prevent missed inspections, adaptable to different engine types/steering/angles. Detection completeness reaches 100%, with simultaneous support for pausing counts + annotations/3D measurements.

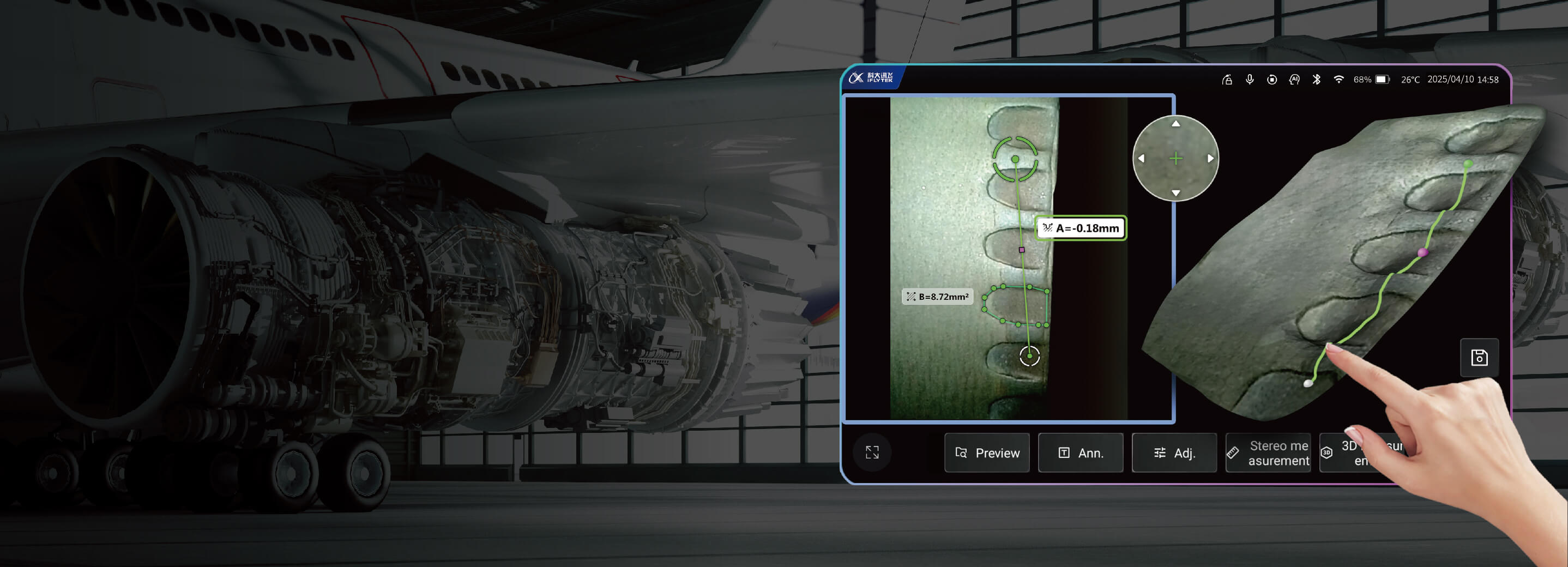

0.01mm Ultra-clear Imaging

120° wide view, 2 million pixels, 0.01mm resolution, intelligent noise reduction, captures microscopic defects in detail even in low light.

High-Precision 3D Measurement

Supports 3D point cloud reconstruction with high integrity and no voids, achieving top international standards. X2 3D offers 13 measurement modes including length, depth, area, section, virtual plane, and plane angle measurements, with a minimum accuracy of 0.01mm and an error rate of less than 5%.

Continuous Power Swap

Innovative dual battery design. Main battery powers equipment, secondary backup. Seamless switch to secondary if main battery dies or power fails, ensuring continuous work.

target

Product Parameters

BX2-3DP

AI 3D Borescope

Main Unit Dimensions: 369mm×189mm×118mm
Display: 7-inch Touch Screen, 1920×1200px
Memory: 8GB + 128GB
Data I/O Ports: HDMI HD Interface, USB 3.0 Interface, USB 2.0 Interface, Type-C Interface, SIM Card Slot (Optional)
CPU Processor: Octa-core Processor, 2.4GHz Main Frequency
GPU Processor: Dedicated 3D Point Cloud Image Accelerator
Insertion Tube Diameter: 2.8mm, 4.0mm, 6.4mm, 8.4mm
Insertion Tube Length: 2.0m, 3.0m, 4.0m, 5.0m, 6.0m (8.0m customizable)
Illumination Brightness: Fiber Optic: 100,000 Lux+; LED: 40,000 Lux+
Image Resolution: 160K, 520K, 1MP, 2MP
Guidance Control: Full 360° Omnidirectional Spherical Guidance, Max 180° Angle (Adjustable); Pure Electric Drive (Lock/Unlock Guidance with Two Fine-Tuning Modes: Locked Stepping and Locked Following)
Standard Quantity of Battery: 1
Lithium-ion Battery: 64.8Wh, 6400mAh
Battery Life: Battery Life: 5+ hours (at 15°C ambient temperature)
Hot-swappable (Power Continuity): The main unit battery can operate independently for 20 minutes without any external power connection.
User Interface: Multi-Touch Screen, Soft Buttons, Dedicated Joystick
Dimming Control: 100-Level Manual/Auto Dimming
Image Control: Image Adjustments: Brightness, Exposure, Contrast, Sharpness, Color Saturation, Gamma, White Balance, Negative, Rotation (90°, 180°, 270°), Mirror, Default Reset
Language Support: Chinese, English, etc.
Measurement Support: 3D High-Precision Measurement
Number of Measurement Modes: 13 Modes
Measurement Modes: Length, Point-to-Line, Depth, Area, Polyline, Cross-Section, Regional Section, Virtual Plane, Plane Angle, Missing Angle, Radius Gauge, R-Angle, Line Angle
Measurement Accuracy: Error within 10% at 0°C to 60°C
Measurement Precision: Minimum 0.01mm
Working Distance Display: 5-point real-time object distance display with measurement area assist frame
Export File Formats: PLY point cloud files (reusable for secondary analysis)
AI Defect Recognition & Blade Counting: Support
Defect Classification: Capable of identifying dents, notches, cracks, tears, ablation, burn-through, deformation, material loss, and other defect types.
Blade Counting: Supports automatic recognition of forward rotation, reverse rotation, pause, and reset to zero.

BX2-3D

AI 3D Borescope

Main Unit Dimensions: 369mm×189mm×118mm
Display: 7-inch Touch Screen, 1920×1200px
Memory: 8GB + 128GB
Data I/O Ports: HDMI HD Interface, USB 3.0 Interface, USB 2.0 Interface, Type-C Interface, SIM Card Slot (Optional)
CPU Processor: Octa-core Processor, 2.4GHz Main Frequency
GPU Processor: Dedicated 3D Point Cloud Image Accelerator
Insertion Tube Diameter: 2.8mm, 4.0mm, 6.4mm, 8.4mm
Insertion Tube Length: 2.0m, 3.0m, 4.0m, 5.0m, 6.0m (8.0m customizable)
Illumination Brightness: Fiber Optic: 100,000 Lux+; LED: 40,000 Lux+
Image Resolution: 160K, 520K, 1MP, 2MP
Guidance Control: Full 360° Omnidirectional Spherical Guidance, Max 180° Angle (Adjustable); Pure Electric Drive (Lock/Unlock Guidance with Two Fine-Tuning Modes: Locked Stepping and Locked Following)
Standard Quantity of Battery: 1
Lithium-ion Battery: 64.8Wh, 6400mAh
Battery Life: Battery Life: 5+ hours (at 15°C ambient temperature)
Hot-swappable (Power Continuity): The main unit battery can operate independently for 20 minutes without any external power connection.
User Interface: Multi-Touch Screen, Soft Buttons, Dedicated Joystick
Dimming Control: 100-Level Manual/Auto Dimming
Image Control: Image Adjustments: Brightness, Exposure, Contrast, Sharpness, Color Saturation, Gamma, White Balance, Negative, Rotation (90°, 180°, 270°), Mirror, Default Reset
Language Support: Chinese, English, etc.
Measurement Support: 3D High-Precision Measurement
Number of Measurement Modes: 9Modes
Measurement Modes: Length, Point-to-Line, Depth, Area, Polyline, Cross-Section, Regional Section, Virtual Plane, Plane Angle
Measurement Accuracy: Error within 10% at 0°C to 60°C
Measurement Precision: Minimum 0.01mm
Working Distance Display: 5-point real-time object distance display with measurement area assist frame
Export File Formats: PLY point cloud files (reusable for secondary analysis)
AI Defect Recognition & Blade Counting: Support
Defect Classification: Capable of identifying dents, notches, cracks, tears, ablation, burn-through, deformation, material loss, and other defect types.
Blade Counting: Supports automatic recognition of forward rotation, reverse rotation, pause, and reset to zero.

BX1

AI 3D Borescope

Main Unit Dimensions: 369mm×189mm×118mm
Display: 7-inch Touch Screen, 1920×1200px
Memory: 8GB + 128GB
Data I/O Ports: HDMI HD Interface, USB 3.0 Interface, USB 2.0 Interface, Type-C Interface, SIM Card Slot (Optional)
CPU Processor: Octa-core Processor, 2.4GHz Main Frequency
GPU Processor: Dedicated 3D Point Cloud Image Accelerator
Insertion Tube Diameter: 2.8mm, 4.0mm, 6.4mm, 8.4mm
Insertion Tube Length: 2.0m, 3.0m, 4.0m, 5.0m, 6.0m (8.0m customizable)
Illumination Brightness: Fiber Optic: 100,000 Lux+; LED: 40,000 Lux+
Image Resolution: 160K, 520K, 1MP, 2MP
Guidance Control: Full 360° Omnidirectional Spherical Guidance, Max 180° Angle (Adjustable); Pure Electric Drive (Lock/Unlock Guidance with Two Fine-Tuning Modes: Locked Stepping and Locked Following)
Standard Quantity of Battery: 1
Lithium-ion Battery: 64.8Wh, 6400mAh
Battery Life: Battery Life: 5+ hours (at 15°C ambient temperature)
Hot-swappable (Power Continuity): The main unit battery can operate independently for 20 minutes without any external power connection.
User Interface: Multi-Touch Screen, Soft Buttons, Dedicated Joystick
Dimming Control: 100-Level Manual/Auto Dimming
Image Control: Image Adjustments: Brightness, Exposure, Contrast, Sharpness, Color Saturation, Gamma, White Balance, Negative, Rotation (90°, 180°, 270°), Mirror, Default Reset
Language Support: Chinese, English, etc.
Measurement Support: Binocular measurement
Number of Measurement Modes: 5Modes
Measurement Modes: Length, Point-to-Line, Depth, Area, Polyline, Cross-Section, Regional Section, Virtual Plane, Plane Angle
Measurement Accuracy: Error within 10% at 0°C to 60°C
Measurement Precision: Minimum 0.01mm
Working Distance Display: 5-point real-time object distance display with measurement area assist frame
Export File Formats: PLY point cloud files (reusable for secondary analysis)
AI Defect Recognition & Blade Counting: Support
Defect Classification: Capable of identifying dents, notches, cracks, tears, ablation, burn-through, deformation, material loss, and other defect types.
Blade Counting: Supports automatic recognition of forward rotation, reverse rotation, pause, and reset to zero.
