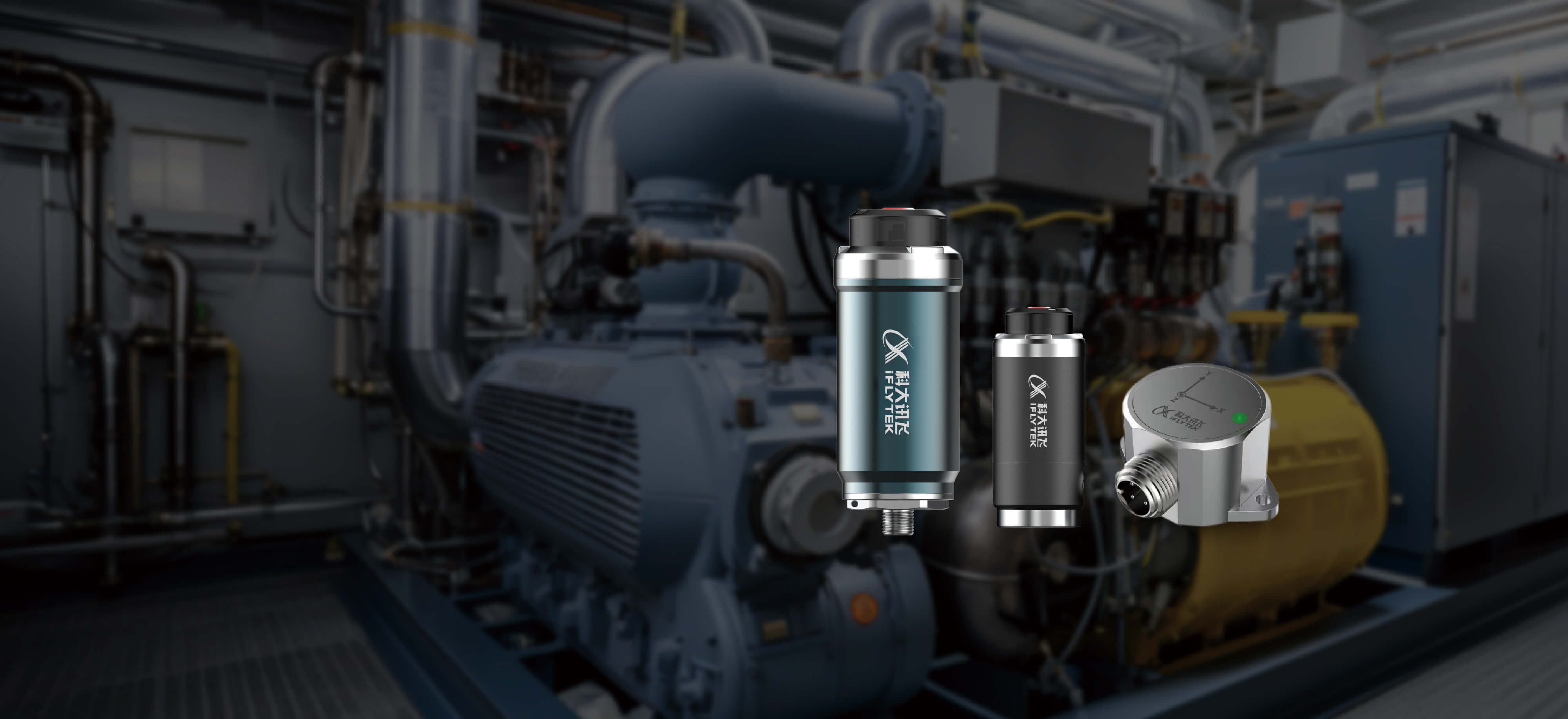

Acoust.-Vib.-Temp. Sensors
target
Core Functions
Comprehensive Multi-Dimensional Data Control
Supports the integration of multi-dimensional data such as sound, vibration, temperature, current, voltage, and load, enabling real-time monitoring and historical review.
Full Coverage of Diverse Analysis Tools
Supports 13 types of analysis charts, including trend graphs, time-domain diagrams, frequency-domain diagrams, and spectrograms, as well as 8 analysis tools such as single-frequency and sideband analysis.
Multi-Dimensional Fusion for Dynamic Early Warning
Integrates multi-dimensional degradation analysis, supports setting alarm values for features like effective value and sound pressure level, provides prediction curves for equipment, and achieves dynamic early warning.
Multi-Platform Remote Real-Time Access
Supports remote access via WEB platforms and mini-programs, allowing real-time monitoring of equipment status, alarm information, and key parameters.
target

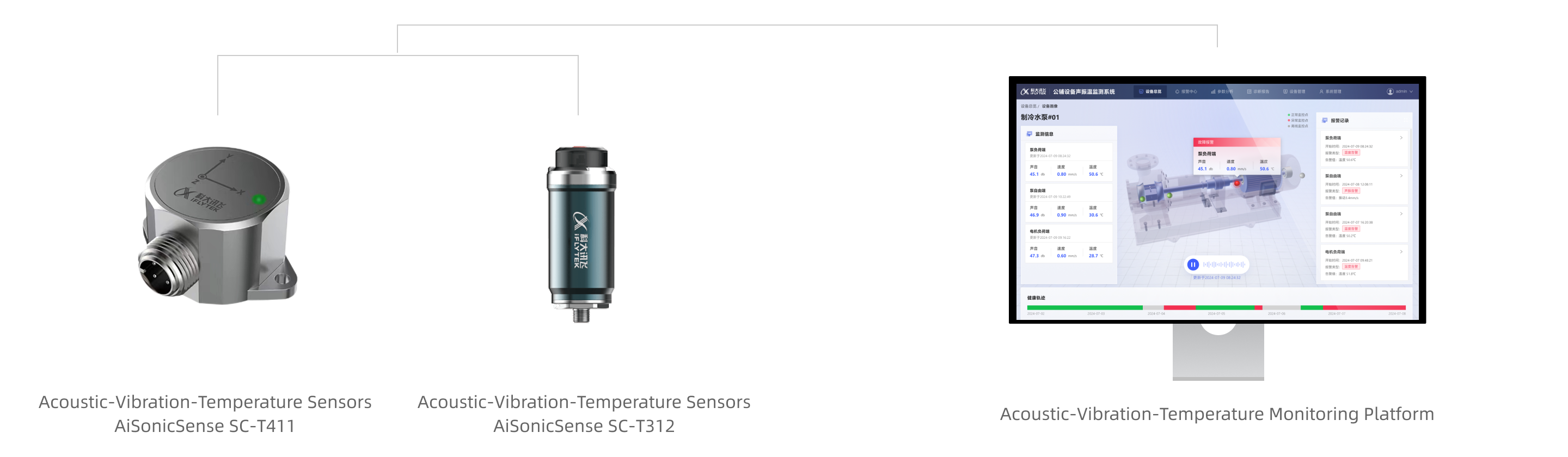

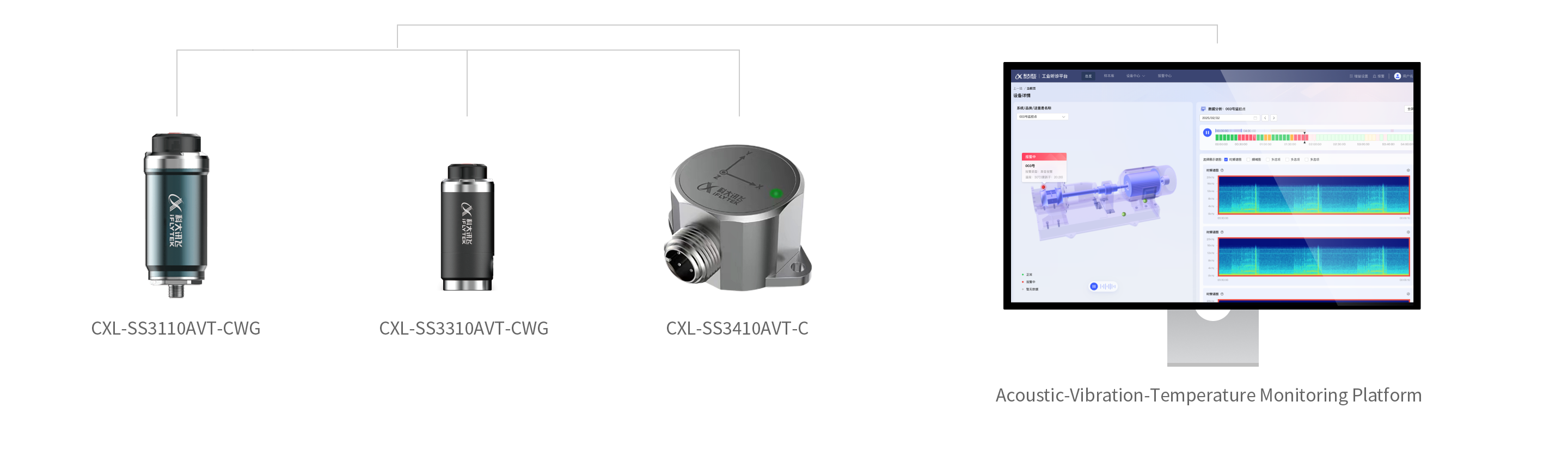

Software Platform
target

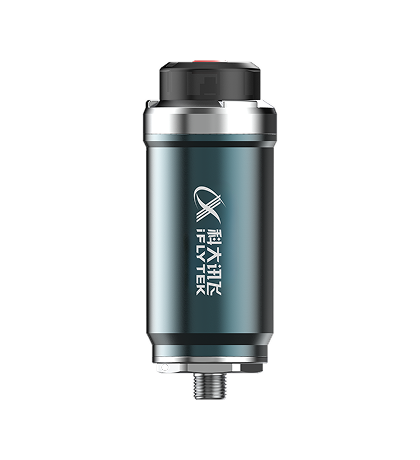

Product Parameters
SC-T312SC-T321SC-T411
Transmission method
Wireless
Installation
Contact
Sound frequency range
20Hz~44KHz
Sound signal-to-noise ratio
66 dBA
Sound directionality
Omnidirectional
Temperature measurement range
-40℃~120℃
Vibration acceleration frequency range
High frequency: 0.1-20kHz; Low frequency: 0.1-6kHz
Communication protocol
MQTT protocol
Explosion-proof certification
\
IP rating
IP 68
Electromagnetic compatibility
IEC 61326-1
Operating temperature
-40℃~70℃
Operating humidity
\
Dimensions
highness: 100 mm; diameter: 42 mm
weight
230g(battery included)
Interface Type
\
structure
All-in-one
target
Application
Power Grid
Power Gen
Mining
Metallurgy
Oil & Gas Industry
Chemical
Gas and Natural Gas
Manufacturing
