target
Core Functions
Proprietary Noise Reduction and Restoration Algorithm
Proprietary sound restoration and noise suppression algorithms reduce equipment degradation and background-noise interference.
Edge Computing Reduces Bandwidth Pressure
Model computation and results are generated at the edge, reducing bandwidth consumption.
Precise Localization of Abnormal Sound Sources
Locates abnormal sound sources in real time with an accuracy of ±2.5 meters.
High Stability Beyond Conventional Providers
Optical-tail attenuation-noise stability exceeds 98%, with performance metrics 21% to 60% higher than conventional suppliers.
Resilience in Extreme and Complex Environments
Suitable for harsh conditions down to -45°C and complex outdoor installation environments.
7-Inch Screen for Intuitive Status Display
A 7-inch display clearly presents device status for straightforward monitoring.
target

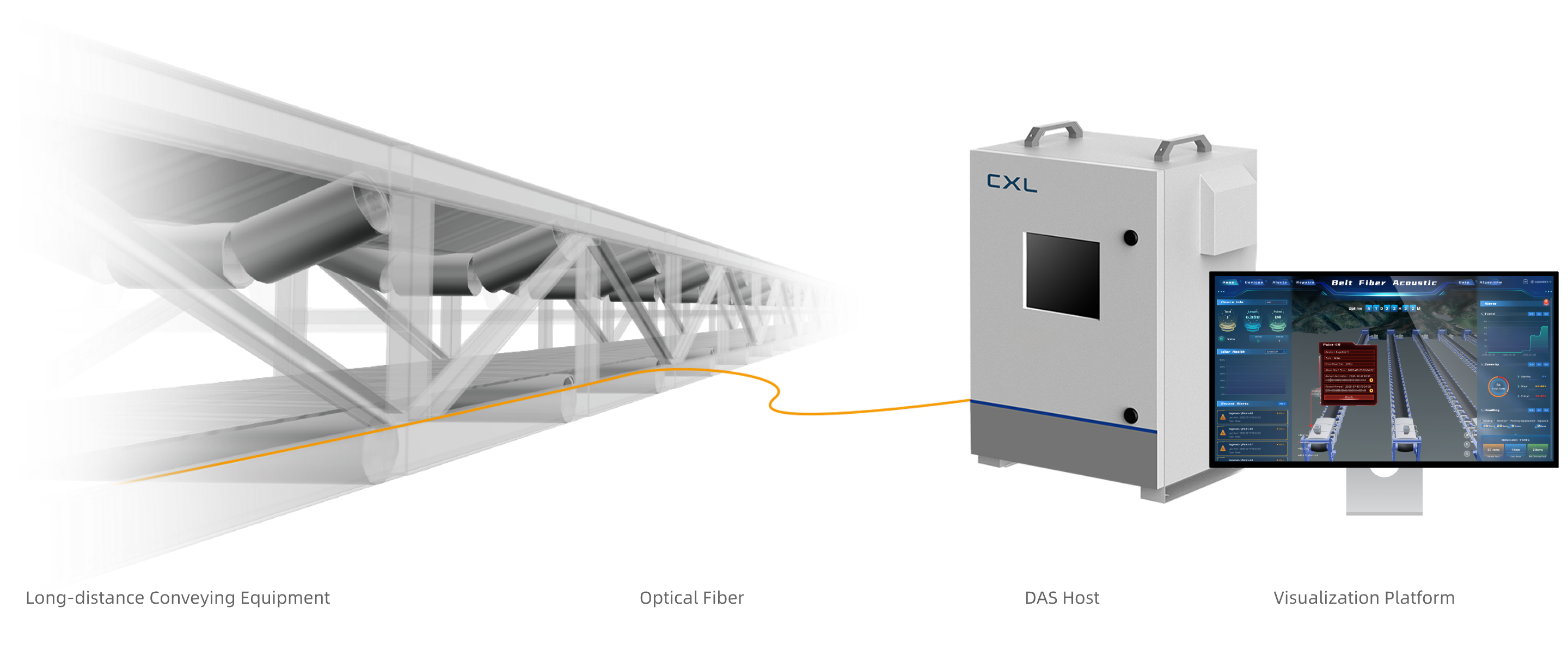

Software Platform
target
Product Parameters

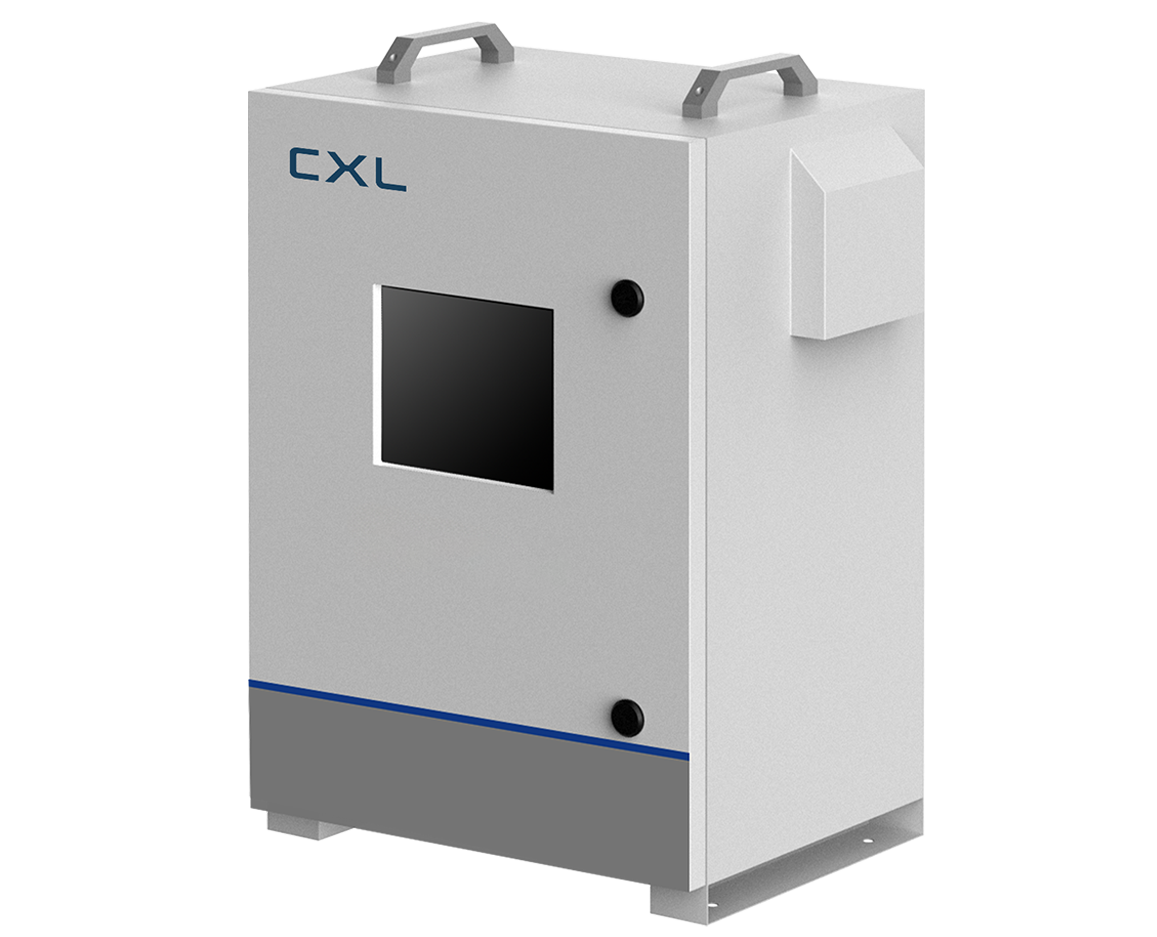

DAS6000-A Series
Distributed Acoustic Sensing Host
- Measurement Mode
- Acoustic
- Number of sound measurement channels
- 1 / 2 / 4 / 8 (optional)
- Maximum detection distance
- 6km/ch
- Maximum positioning accuracy
- ±2.5 m
- Frequency response range
- 5Hz~10kHz
- Display
- 7-inch capacitive touch screen, resolution 1024*600
- Power consumption
- ≤125W
- Material
- Full Metal
- IP rating
- IP55
- Product Dimenssion（H*W*D）
- 550mm*405mm*300mm
- weight
- ≤32kg
- Edge computing
- Support
- Functional Interface
- RJ45 Gigabit Ethernet ports ×2; HDMI port ×1; USB 3.0 ×2; RS-485 port ×1; Relay alarm output ×4
- Software Features
- Fiber Break Alarm, Intelligent Algorithms, Sound Restoration, Acoustic Signature Visualization, Operation Reports, Audio Enhancement, Periodic Abnormal Sounds, Friction-Induced Abnormal Sounds, Fault Diagnosis, Third-Party Integration
DAS6000-AT Series
Distributed Acoustic Sensing Host
- Measurement Mode
- Acoustic、Temperature
- Number of sound measurement channels
- 1 / 2 / 4 / 8 (optional)
- Maximum detection distance
- Acoustic：6km/ch、Temperature：10km/ch
- Maximum positioning accuracy
- Acoustic：±2.5 m、Temperature：±1 m
- Frequency response range
- 5Hz~10kHz
- Display
- 7-inch capacitive touch screen, resolution 1024*600
- Power consumption
- ≤125W
- Material
- Full Metal
- IP rating
- IP55
- Product Dimenssion（H*W*D）
- 550mm*405mm*300mm
- weight
- 32KG
- Edge computing
- Support
- Functional Interface
- RJ45 Gigabit Ethernet ports ×2; HDMI port ×1; USB 3.0 ×2; RS-485 port ×1; Relay alarm output ×4
- Software Features
- Fiber Break Alarm, Intelligent Algorithms, Sound Restoration,Temperature Monitoring, Acoustic Signature Visualization, Operation Reports, Audio Enhancement, Periodic Abnormal Sounds, Friction-Induced Abnormal Sounds, Fault Diagnosis, Third-Party Integration
target
Product Video
DAS System Acoustic Reconstruction Demo
Using fiber optics to capture acoustic signal from a player within a soundproof enclosure and accurately reconstructing it at the platform, this capability for high-fidelity remote acoustic reconstruction demonstrates CXL's superior performance in long-distance fiber optic acoustic sensing applications.
target
Application
Conventional Power
Mining
Energy & Chemical
Manufacturing
