Ultrasonic Thickness Gauge

Product Advantages

High-Precision Non-Destructive Thickness Measurement Technology

In scenarios where the workpiece surface is covered with rust, this product can achieve a maximum detection depth of 4mm, enabling non-contact and precise thickness measurement. It effortlessly penetrates through coatings without the need for coupling agents or surface grinding. Even when the detection surface is covered with paint or exhibits unevenness, it can still efficiently and accurately measure thickness, enhancing inspection efficiency.

Material Sound Velocity Preset and Management Function

The product comes preloaded with sound velocity data for various common materials, allowing users to dynamically add or delete material sound velocity information based on actual needs. To ensure measurement accuracy, the product incorporates temperature compensation during sound velocity calibration, guaranteeing precise measurements.

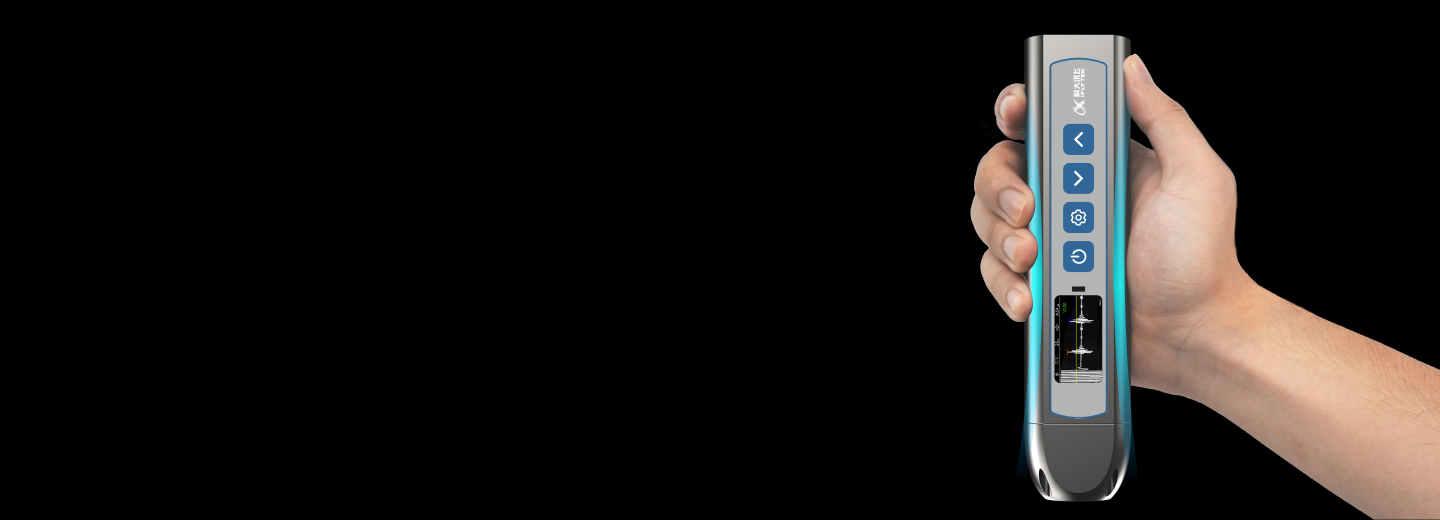

Ergonomic Design Concept

Adopting an ergonomic optimization design, the product boasts a compact structure and small size, making it convenient to carry. Additionally, it is equipped with a high-brightness segmented LCD screen, enabling clear data reading even under strong light conditions.

Product Parameters

Sampling Rate

80MSPS

Bandwidth

2.5MHz~6MHz

Transmission

±600V_400Hz_125ns

Gain

Automatic, 0~96dB, with 1dB increments

Measurement Accuracy

±0.01mm

Sound Velocity Range

400~9999 m/s

Effective Measuring Range

1.0~640 mm

Averaging Levels

L, M, H

Lift-Off Distance

5mm (Aluminum), 4mm (Carbon Steel), 3mm (Stainless Steel)

Measurement range

measurement of carbon steel-1X: 160mm, 2X: 320mm, 3X: 640mm

Measurement Types

Aluminum, Copper, Iron, Carbon Steel, Cast Steel, Alloy Steel, Stainless Steel, Titanium Alloy, and other metallic materials

Measurement Channels

Thin Parts, Universal, Bar Stock

Measurement Modes

Single Echo (I-E), Double Echo (E-E)

Search Modes

Leading Edge-Leading Edge, Peak-Peak, Peak-Leading Edge

Auxiliary Functions

Auto Freeze, Auto Gain, Auto Sleep, A-Scan Waveform Display

Correction Functions

Gate Height Adjustment, Delay Blanking Adjustment, Manual Gain Adjustment, Sound Velocity Calibration, High-Temperature Compensation

Communication

RS-485 or USB 2.0

Charger

5V2A, Standard Type-C Interface

Display

1.47-inch 320×172 IPS_LCD

Dimensions

178.4mm x 42mm x 32mm

Battery

3.7V 3400mAh Lithium Battery, with a runtime of 6 hours

Weight: A (Metal Case)

A (Metal Case): 358g, B (Injection Molded Case): 255g, C (Injection Molded + Quick Release): 289g
