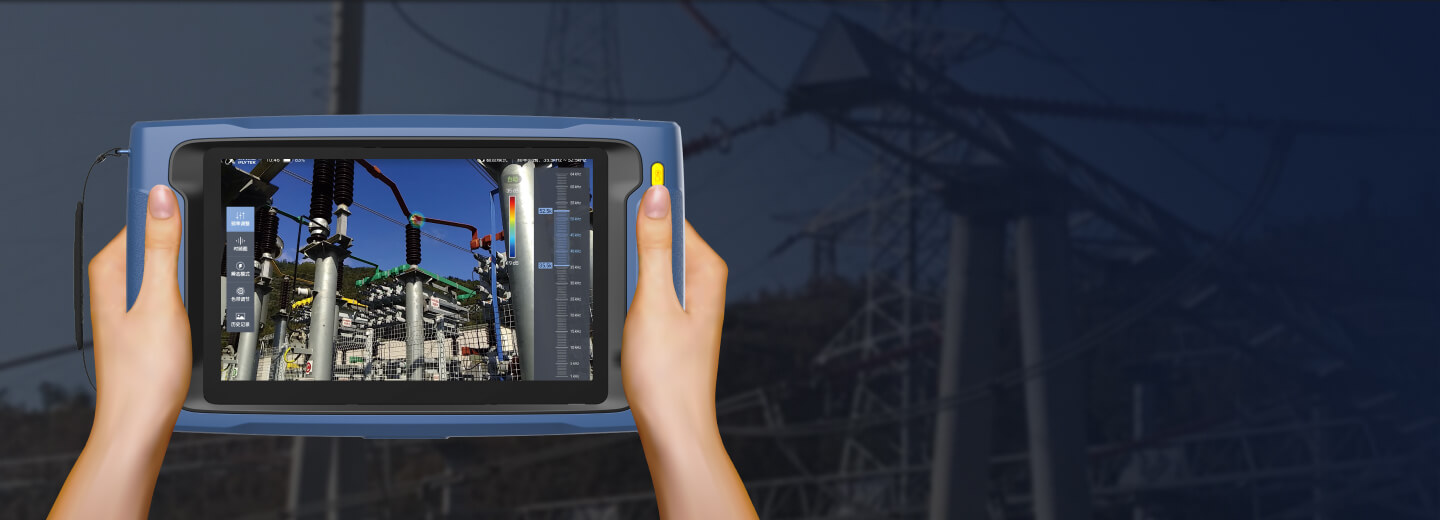

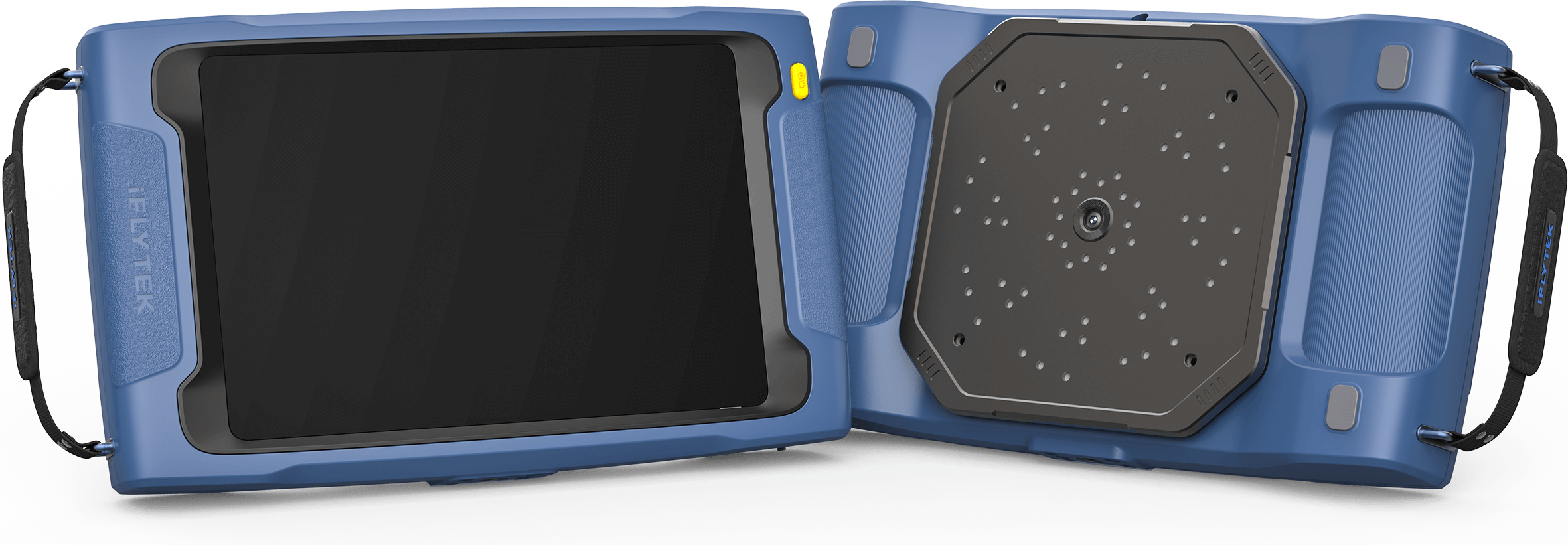

AI Acoustic Imager

Product Advantages

Quick and Efficient

The product supports large-scale detection with instant imaging, reducing inspection time from 3 hours to just 10 minutes.

Accurate Localization

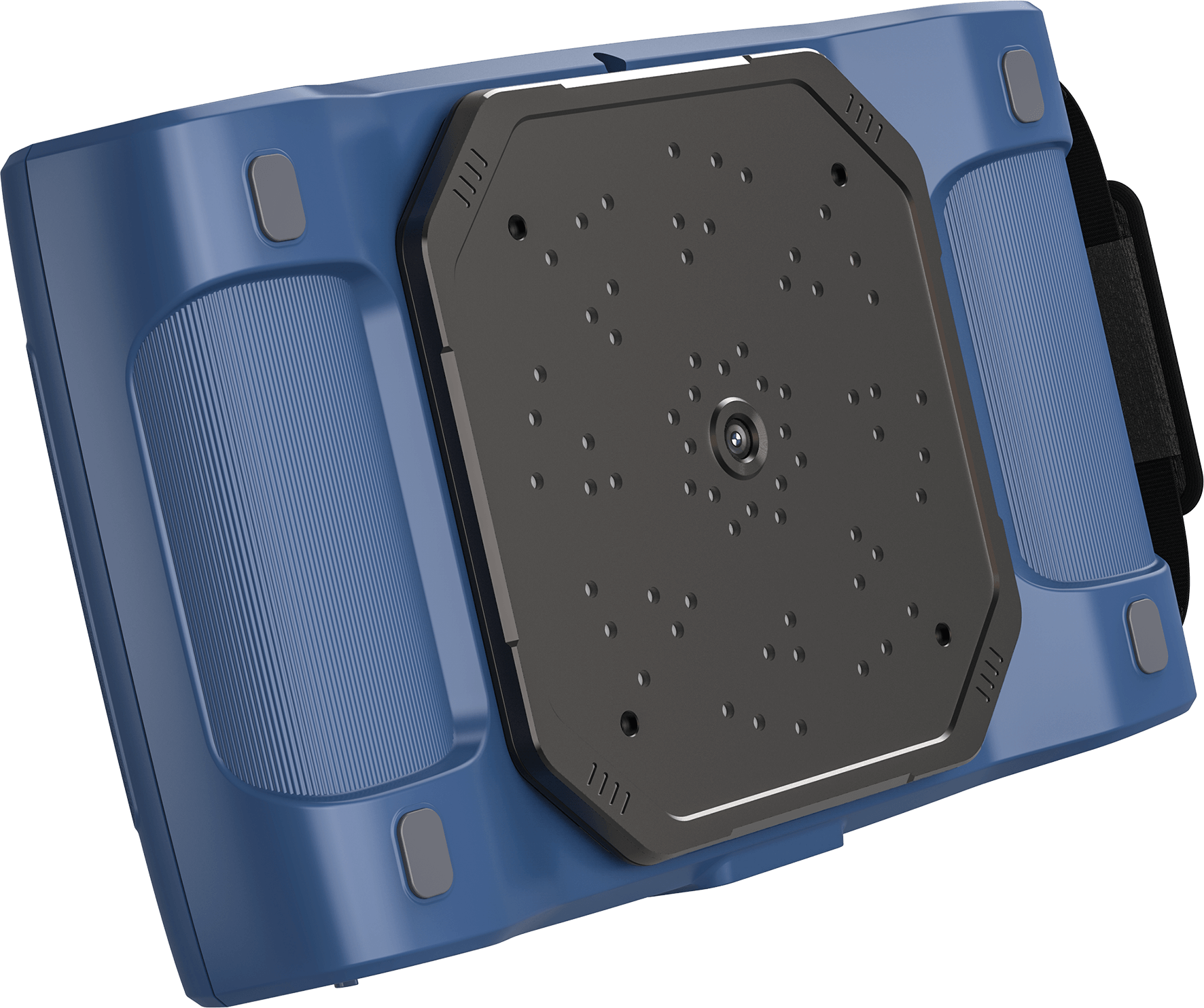

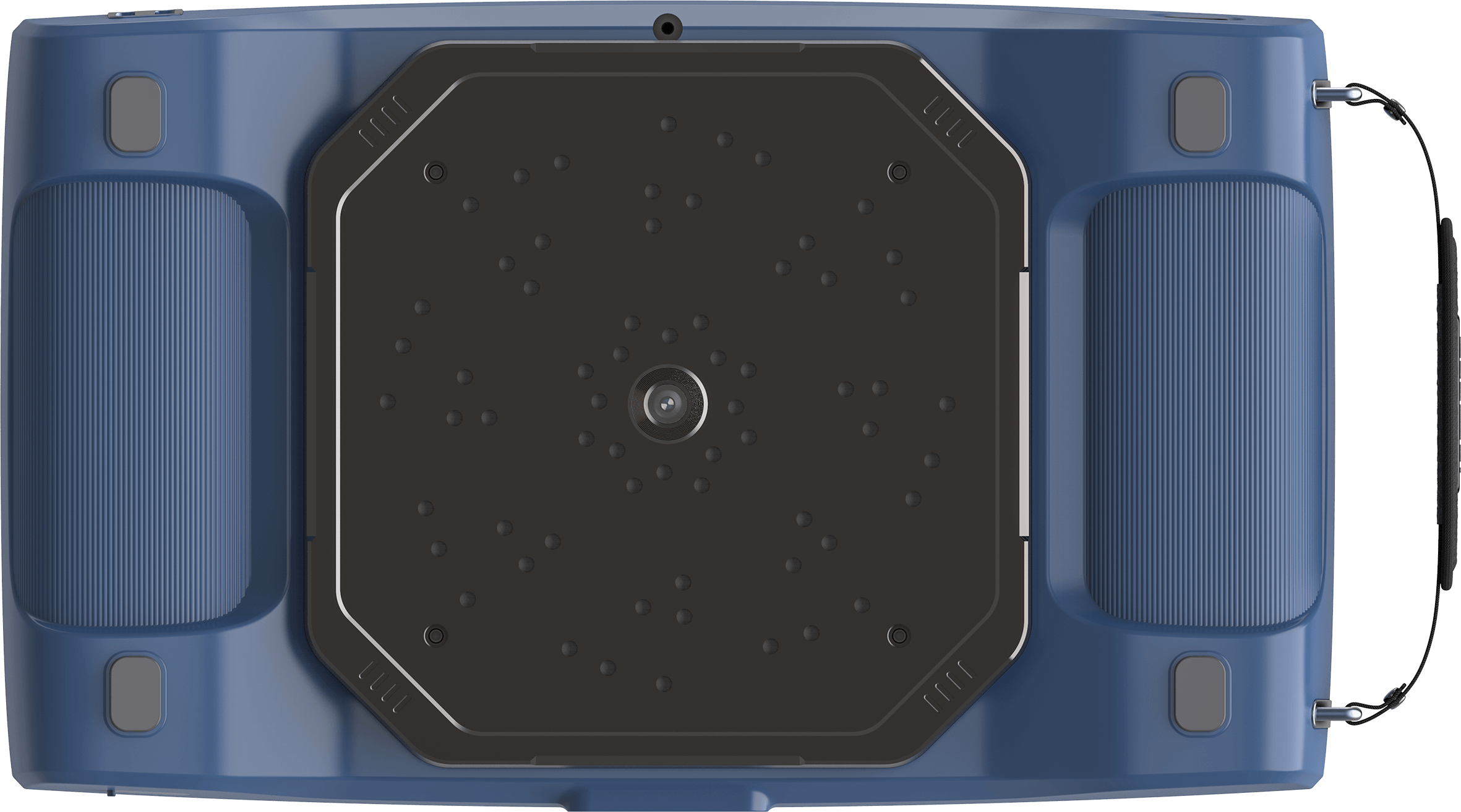

Crafted with an optimized array geometry featuring multi-arm spirals and advanced sound source localization algorithms, the product ensures a positioning deviation of less than 1°, leading to more precise inspections.

Safety Guaranteed

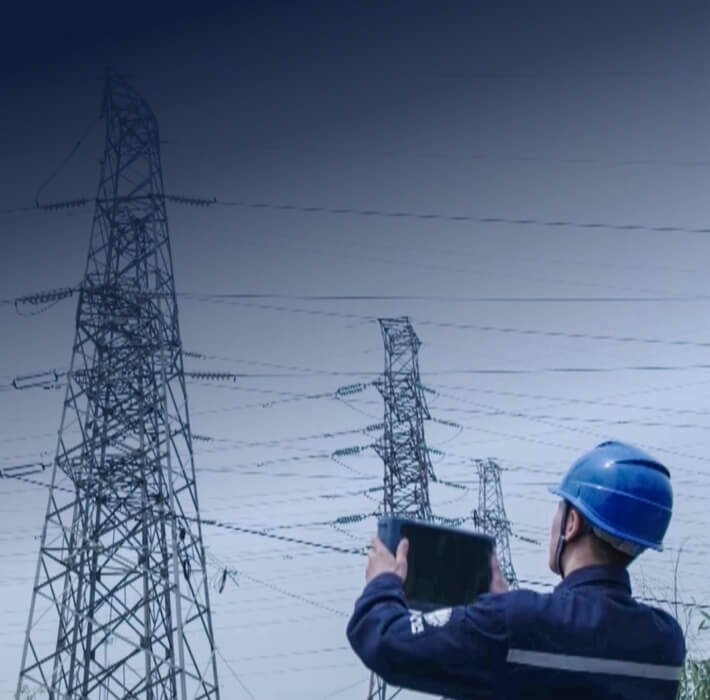

With a maximum detection distance of up to 40 meters, the product eliminates the need for inspectors to climb or be exposed to hazardous areas for extended periods, ensuring the safety of personnel.

Easy to Operate

The product supports functions such as photo-taking and video recording, making documentation convenient and straightforward. Operation is simple and requires no training.

Product Parameters

Sensor Configuration

64 array high-precision silicon microphone

Sampling Rate

128kHz

Dynamic Range

30dB~120dB

Bandwidth

1kHz~64kHz

Distance

0.5m~40m

Display Screen

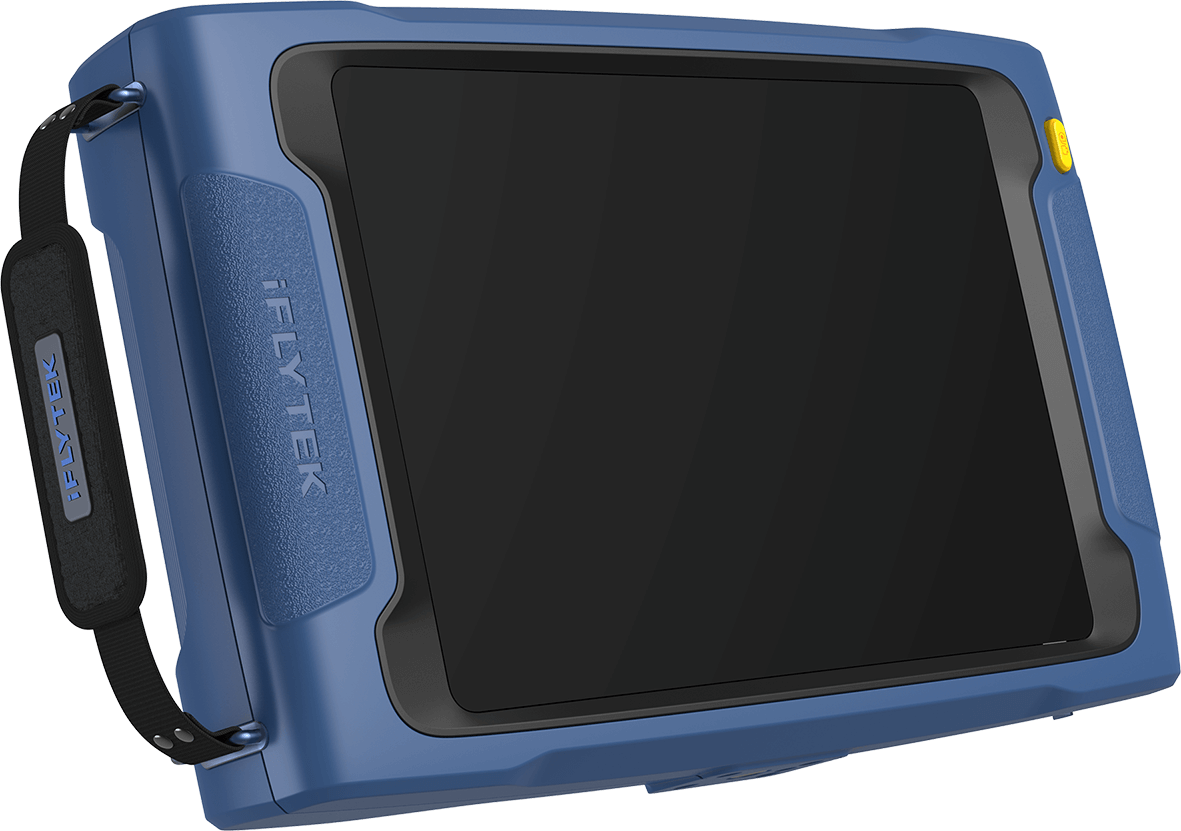

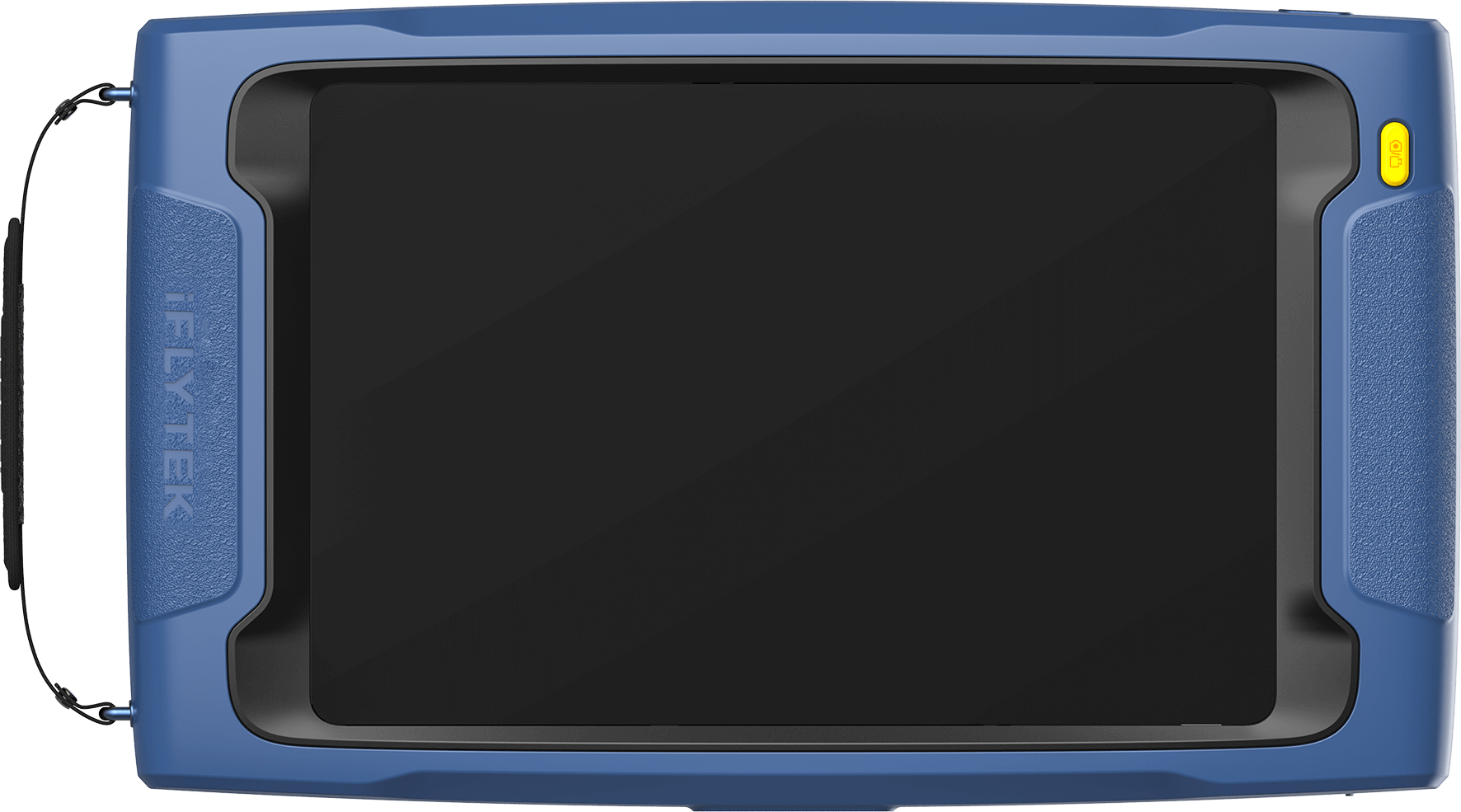

Capacitive Screen, 10.1 inches, 1920*1200

Camera

13 Megapixel

Field of View

62° * 49°

Battery

4 hours

Ambient Temperature

0°C~40°C

Operating Humidity

0%~90%

Weight

1.8Kg

Dimensions

Dimensions 300mm x 180mm x 60mm

IP Rating

IP54

Fault Detection

Detection of partial discharge, gas leakage, and abnormal equipment noises

Intelligent Scenarios

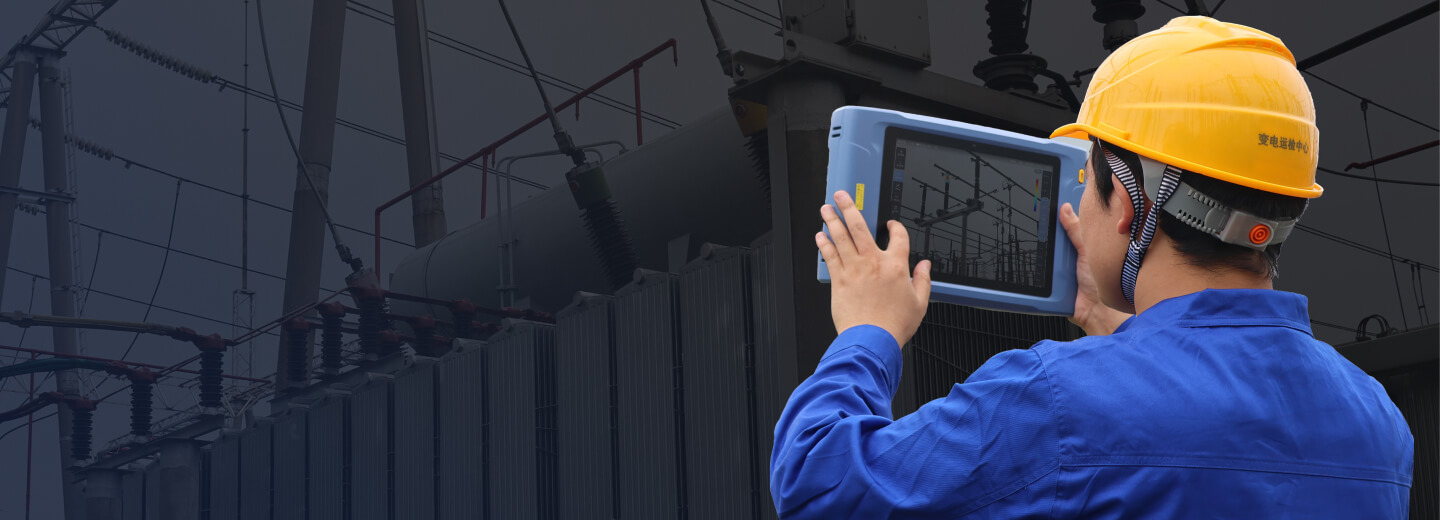

Intelligent scenarios for partial discharge detection of insulators, wall bushings, etc., as well as intelligent scenarios for negative pressure suction gas leakage detection

Intelligent Noise Reduction

Built in intelligent noise reduction algorithm

Sound Source Parameters

Transient and steady-state modes

Sound Source Modes

Single-source and multi-source modes
